Buy V-520 Rooftop Truck Unit Online
DESCRIPTION
The V-520 series vehicle-powered refrigeration units provide superior cooling performance in two different packages: nosemount and rooftop. The nosemount refrigeration unit is ideal for small to medium size insulated box trucks, while the rooftop arrangement is perfect for medium to large vans and body-on-chassis vehicles with reach-in side compartments. Only Thermo King offers a rooftop reefer unit with this much capacity in a slim line package (just 6 inches above the roof for non-standby units).
Buy V-520 Rooftop Truck Unit Online
FEATURES
- SmartPower electric standby option (230 VAC)
- Automatic hot gas defrost
- Optional heating package (hot gas, MAX units)
- Jet Lube compressor lubrication
- Jet Cool compressor injection cooling (MAX units)
- DSR controller
- 12VDC
- 24VDC (non-standby units only)
- Lightweight construction
- Very long life condenser fans
COOLING AND HEATING CAPACITIES
- Model: V-520 MAX RT
- Refrigerant: R-404A
- Truck Engine Cooling Capacity-BTU/hr: 35°F: 15,500
- Truck Engine Cooling Capacity-BTU/hr: 0°F: 8,200
- Truck Engine Cooling Capacity-BTU/hr: -20°F: 5,000
- Electric Standby Cooling Capacity-BTU/hr: 35°F: 10,400
- Electric Standby Cooling Capacity-BTU/hr: 0°F: 6,600
- Electric Standby Cooling Capacity-BTU/hr: -20°F: 3,500
- Evap Overflow CFM: 1,415
- Hot Gas Heating-BUT/hr: Engine: 14,000
- Hot Gas Heating-BUT/hr: Electric: 8,000
Buy V-520 Rooftop Truck Unit in usa
V-520 Rooftop Truck Unit Online
| Choose an option |
New ,Used |
|---|
Description
Buy V-520 Rooftop Truck Unit Online
Buy V-520 Rooftop Truck Unit Online

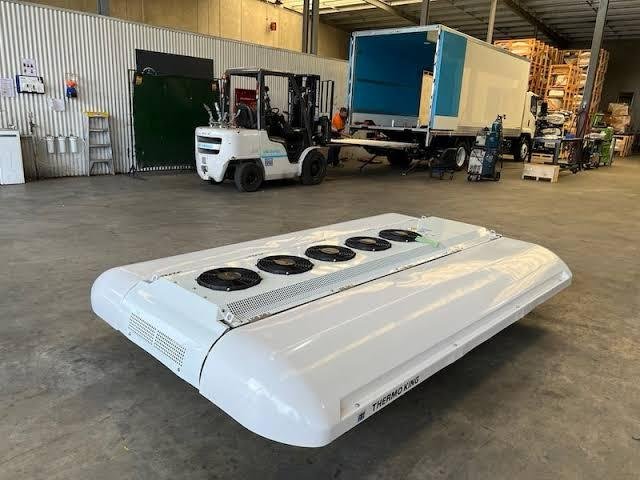

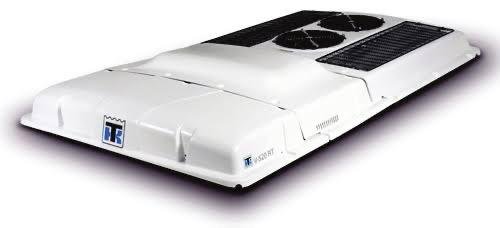

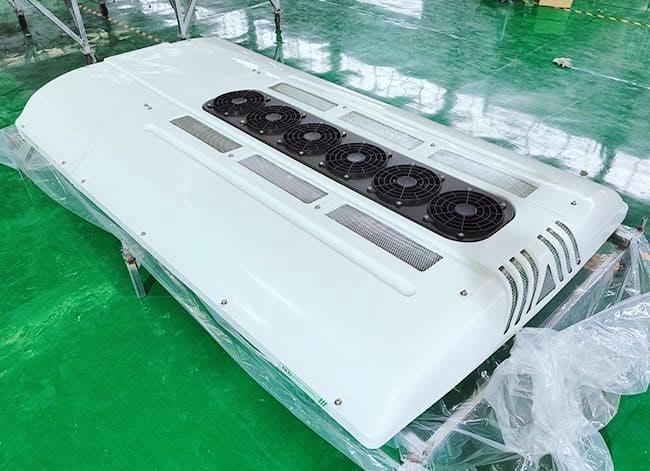

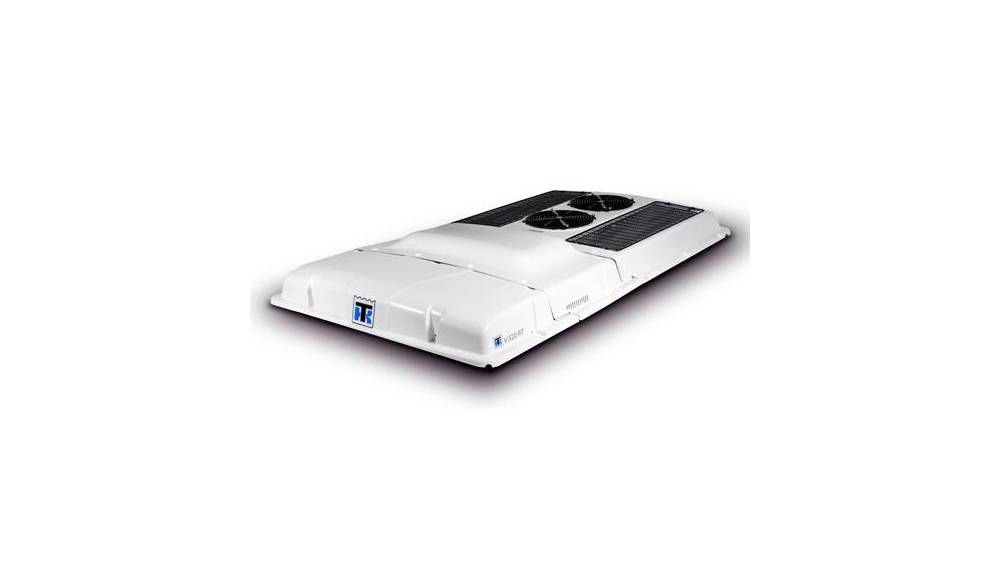

V-520 Rooftop Truck Unit

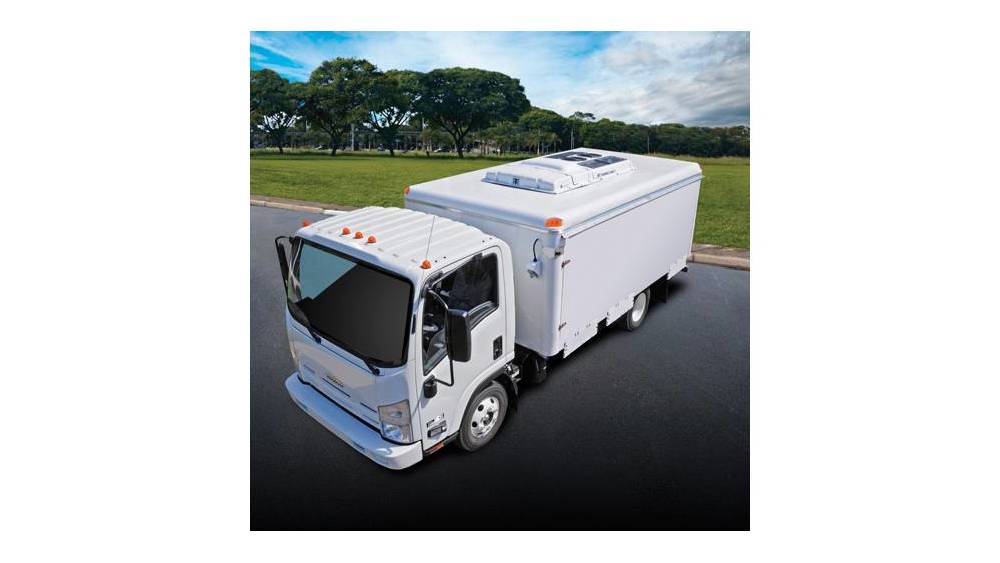

Perfect for medium to large insulated vans and body-on-chassis vehicles with reach-in side compartments.
The V-520 rooftop arrangement is perfect for medium to large vans and body-on-chassis vehicles with reach-in side compartments. Only Thermo King offers a rooftop reefer unit with this much capacity in a slim line package (just 6 inches above the roof for non-standby units).Buy V-520 Rooftop Truck Unit Online
The V-520 rooftop truck unit
The V-520 rooftop reefer unit uses an engine-mounted TK-16 compressor or optional TK-312 reciprocating compressor. Refrigerant R452A is available for MAX and SPECTRUM units for frozen and multi-temp applications, while R134A is available for fresh applications.Buy V-520 Rooftop Truck Unit Online
Features:
- SmartPower electric standby option (230 VAC)
- Automatic hot gas defrost
- Optional heating package (hot gas, MAX units)
- Jet lube compressor lubrication
- Jet cool compressor injection cooling (MAX units)
- Controller
- 12VDC
- 24VDC (non-standby units only)
- Lightweight construction
- Long life condenser fans
Buy V-520 Rooftop Truck Unit Online
Available options
Door switch kit
Reduces load temperature rise and saves fuel when the vehicle doors are opened by turning off the refrigeration system. Unit will automatically restart when doors are closed.
Din adaptor
The din adaptor box enables the controller to be installed in the vehicle dashboard. The aesthetically-designed box allows the controller to be fitted in any available radio slot.
Hose covers
Highly durable kits providing total protection for hoses and cables while enhancing vehicle appearance. Easily installed on all bodies. Metal and plastic options are available.Buy V-520 Rooftop Truck Unit Online
Muffler kit
Purpose-designed kit to eliminate transmission of unit vibration and noise into the driver cab. Provides significant gains in driver comfort.
Snow covers
Designed to protect the unit condenser in extreme conditions. The aerodynamically-designed snow cover prevents the buildup of snow and ice on fan blades, avoiding downtime, and additional maintenance costs.
The V-520 rooftop truck unit
The V-520 rooftop reefer unit uses an engine-mounted TK-16 compressor or optional TK-312 reciprocating compressor. Refrigerant R452A is available for MAX and SPECTRUM units for frozen and multi-temp applications, while R134A is available for fresh applications.Buy V-520 Rooftop Truck Unit Online
Features:
Buy V-520 Rooftop Truck Unit Online
- SmartPower electric standby option (230 VAC)
- Automatic hot gas defrost
- Optional heating package (hot gas, MAX units)
- Jet lube compressor lubrication
- Jet cool compressor injection cooling (MAX units)
- Controller
- 12VDC
- 24VDC (non-standby units only)
- Lightweight construction
- Long life condenser fans
Available options
Door switch kit
Reduces load temperature rise and saves fuel when the vehicle doors are opened by turning off the refrigeration system. Unit will automatically restart when doors are closed.Buy V-520 Rooftop Truck Unit Online
Din adaptor
The din adaptor box enables the controller to be installed in the vehicle dashboard. The aesthetically-designed box allows the controller to be fitted in any available radio slot.
Hose covers
Highly durable kits providing total protection for hoses and cables while enhancing vehicle appearance. Easily installed on all bodies. Metal and plastic options are available.
Muffler kit
Purpose-designed kit to eliminate transmission of unit vibration and noise into the driver cab. Provides significant gains in driver comfort.
Snow covers
Designed to protect the unit condenser in extreme conditions. The aerodynamically-designed snow cover prevents the buildup of snow and ice on fan blades, avoiding downtime, and additional maintenance costs.
Unit Specs

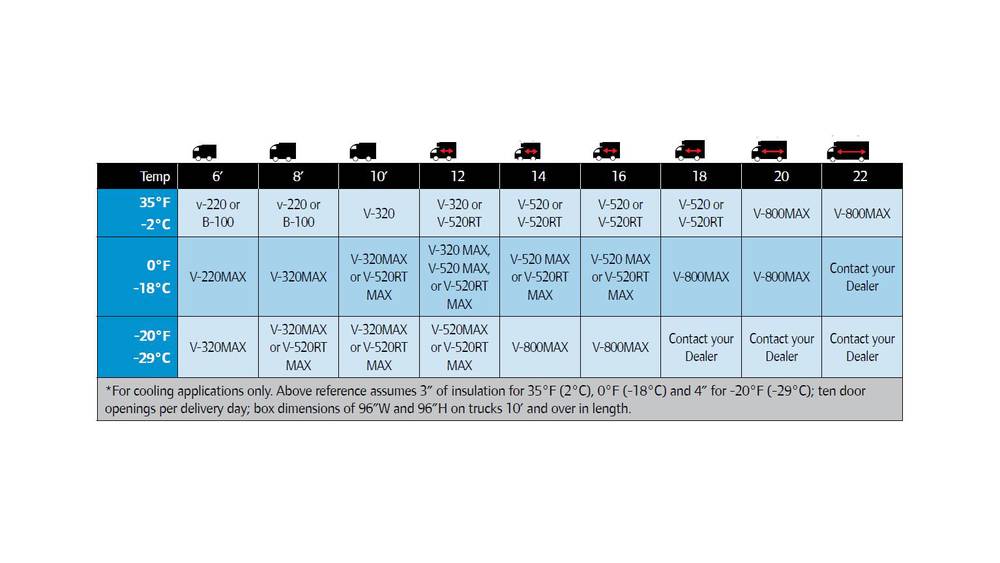

Temperature Guide
|

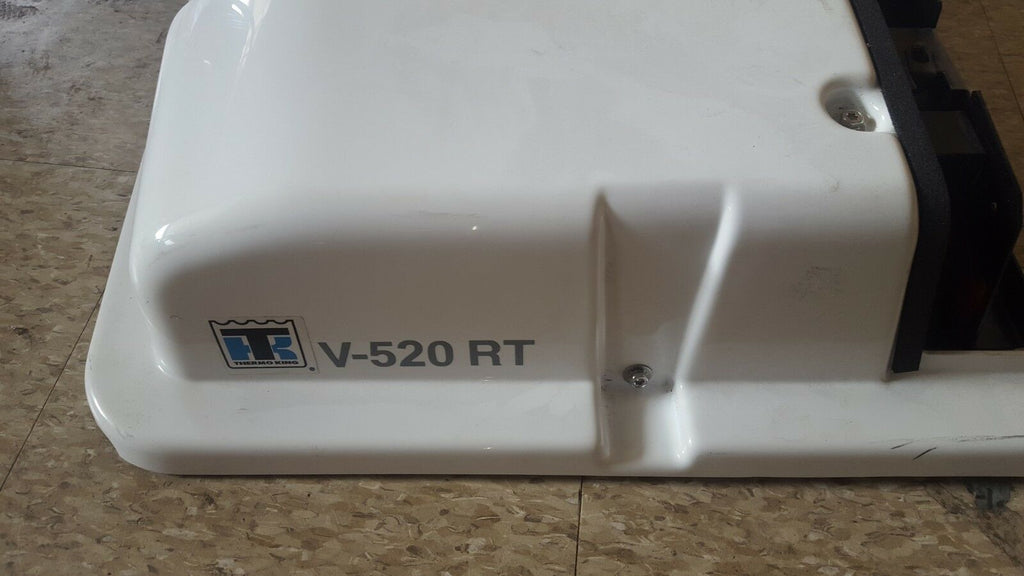

V-520 RT
|
35°F
|
0°F
|
-20°F
|
|---|---|---|---|
|
Truck Engine Cooling Capacity (BTU/hr)
|
12,200
|
—
|
—
|
|
Electric Standby Cooling Capacity (BTU/hr)
|
10,000
|
—
|
—
|
|
V-520 RT MAX & SPECTRUM
|
35°F
|
0°F
|
-20°F
|
|---|---|---|---|
|
Truck Engine Cooling Capacity (BTU/hr)
|
15,500
|
8,200
|
5,000
|
|
Electric Standby Cooling Capacity (BTU/hr)
|
10,400
|
6,600
|
3,500
|
Non-MAX units (R-134A) are rated @ 0o F but not allowed to operate below 25o F due to system protection. All standby capacities rated w/230 VAC option.
|
CFM
|
|
|---|---|
|
Evap Airflow
|
1,415
|
|
Engine
|
Electric
|
|
|---|---|---|
|
Coolant Heating (BTU/hr)
|
—
|
—
|
|
Hot Gas Heating (BTU/hr)
|
14,000
|
8,000
|
Introduction to the V-520 Rooftop Truck Unit
Buy V-520 Rooftop Truck Unit Online
The Thermo King V-520 Rooftop Truck Unit is a sophisticated refrigeration system designed for medium to large insulated vans and body-on-chassis vehicles, particularly those with reach-in side compartments. Manufactured by Thermo King, a global leader in transport refrigeration, the V-520 is part of a broader lineup of direct-drive refrigeration units aimed at ensuring temperature control for perishable goods during transportation. Its rooftop design, compact yet powerful performance, and adaptability to various applications make it a standout choice in the cold chain logistics industry.Buy V-520 Rooftop Truck Unit Online
As of March 9, 2025, the demand for reliable refrigeration solutions in transportation continues to grow, driven by e-commerce, last-mile delivery, and stricter regulations on food safety and pharmaceutical transport. The V-520 addresses these needs with a blend of efficiency, durability, and innovative features, positioning it as a critical tool for businesses aiming to maintain product integrity while optimizing operational costs.Buy V-520 Rooftop Truck Unit Online
This essay explores the V-520’s design, technical specifications, applications, benefits, and its role in modern logistics. We’ll also consider its environmental impact, maintenance requirements, and how it compares to similar units in the market.
Buy V-520 Rooftop Truck Unit Online
Design and Features of the V-520 Rooftop Truck Unit
The V-520 Rooftop Truck Unit is engineered with a focus on maximizing cooling capacity while minimizing its footprint. Unlike nosemount units, which are mounted on the front of the cargo area, the rooftop configuration sits atop the vehicle, offering a slim profile—just 6 inches above the roof for non-standby units. This design not only enhances aerodynamics but also frees up space inside the cargo area, making it ideal for vehicles with side-access compartments.Buy V-520 Rooftop Truck Unit Online
Key Components
1.Compressor Options: The V-520 is powered by an engine-mounted TK-16 compressor as standard, with an optional TK-312 reciprocating compressor available for enhanced performance. These compressors are driven directly by the vehicle’s engine, eliminating the need for a separate diesel engine and reducing both weight and fuel consumption.
2.Refrigerants: The unit supports two refrigerants depending on the model:
•R-134A: Used in non-MAX units for fresh applications, suitable for temperatures down to 25°F (not lower due to system protection limits).
•R-452A: Employed in MAX and SPECTRUM units for frozen and multi-temperature applications, offering greater versatility.Buy V-520 Rooftop Truck Unit Online
3.Controller: The V-520 features a DSR (Direct Smart Reefer) controller, which provides precise temperature management and diagnostics. An optional in-cab adaptor box allows the controller to be mounted in the vehicle’s dashboard, integrating seamlessly into the driver’s workspace.

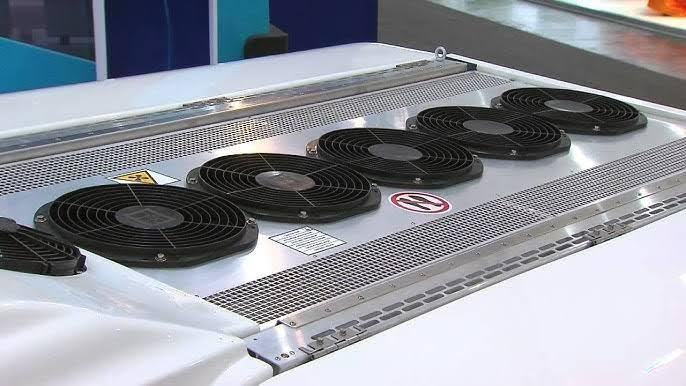

4.Condenser and Fans: The unit includes long-life condenser fans designed for durability, paired with a lightweight construction that reduces strain on the vehicle.
Variants
The V-520 comes in several configurations to meet diverse needs:
•V-520 Standard: For fresh produce and goods requiring moderate cooling.
•V-520 MAX: Offers higher capacity for frozen applications, with optional hot gas heating for defrost and temperature maintenance in cold climates.
•V-520 SPECTRUM: Designed for multi-temperature applications, allowing different zones within the cargo area to maintain distinct temperatures.Buy V-520 Rooftop Truck Unit Online
Buy V-520 Rooftop Truck Unit Online
Smart Features
•SmartPower Electric Standby: Available with a 230 VAC option, this feature allows the unit to run on electric power when the vehicle is stationary, reducing engine idling and emissions.
•Door Switch Integration: The system can shut off when doors are opened, minimizing temperature loss and saving fuel, then automatically restart when doors close.
•Jet Lube and Jet Cool: MAX units include advanced compressor lubrication (Jet Lube) and injection cooling (Jet Cool), enhancing reliability under demanding conditions.Buy V-520 Rooftop Truck Unit Online
Technical Specifications
To understand the V-520’s capabilities, let’s examine its cooling and heating capacities (based on typical Thermo King data):
•Cooling Capacity (Truck Engine, MAX Model, R-404A):
•35°F (2°C): 15,500 BTU/hr
•0°F (-18°C): 8,200 BTU/hr
•-20°F (-29°C): 5,000 BTU/hr
•Electric Standby Cooling Capacity (MAX Model):
•35°F: 10,400 BTU/hr
•0°F: 6,600 BTU/hr
•-20°F: 3,500 BTU/hr
•Voltage Options: 12VDC or 24VDC for non-standby units.
•Height: 6 inches above the roof (non-standby), slightly taller with standby components.
These figures highlight the V-520’s ability to handle a wide range of temperature requirements, from fresh produce at 35°F to deep-frozen goods at -20°F. The electric standby option, while less powerful than engine-driven mode, ensures efficient operation during loading or unloading without relying on the vehicle’s engine.
Applications in Modern Logistics
The V-520 Rooftop Truck Unit is tailored for medium to large vans and body-on-chassis vehicles, making it a versatile solution for various industries:
1.Food Delivery: Grocery chains and meal kit services rely on the V-520 to keep perishables like dairy, meat, and vegetables fresh during transit. The SPECTRUM variant excels in multi-temp scenarios, such as delivering frozen meals alongside chilled beverages.Buy V-520 Rooftop Truck Unit Online
2.Pharmaceutical Transport: With precise temperature control, the V-520 ensures vaccines, insulin, and other temperature-sensitive drugs remain within required ranges, critical amid heightened demand post-2020.
3.Floral Distribution: Flowers require consistent cool temperatures to maintain freshness, and the V-520’s slim design suits delivery vans navigating urban routes.
4.Catering and Events: For mobile catering, the unit’s ability to maintain food safety standards during transport is invaluable.Buy V-520 Rooftop Truck Unit Online
Buy V-520 Rooftop Truck Unit Online
Its rooftop placement is particularly advantageous for vehicles with side compartments, common in urban delivery fleets, as it avoids obstructing access points and maximizes cargo space.
Benefits of the V-520 Rooftop Truck Unit
Efficiency and Cost Savings
•Fuel Efficiency: By leveraging the vehicle’s engine and offering electric standby, the V-520 reduces fuel consumption compared to diesel-powered units.
•CARB TRU Exemption: With no emissions in direct-drive mode, it avoids costly compliance upgrades under California Air Resources Board regulations.
•Door Switch Feature: Minimizing refrigeration during door openings cuts energy waste, a significant advantage for frequent-stop delivery routes.Buy V-520 Rooftop Truck Unit Online
Durability and Reliability
•Long-Life Components: The condenser fans and lightweight construction ensure longevity, reducing downtime and repair costs.
•Jet Lube and Jet Cool: These technologies enhance compressor performance, critical for maintaining cooling in extreme conditions.Buy V-520 Rooftop Truck Unit Online
Environmental Impact
•Low Noise: Ideal for urban areas with noise restrictions, the V-520 operates quietly, enhancing driver and community comfort.
•Reduced Emissions: The SmartPower option and HVO (hydrotreated vegetable oil) fuel compatibility (approved by Thermo King) align with sustainability goals.
•Refrigerant Choices: R-452A has a lower global warming potential than older refrigerants like R-404A, reflecting a shift toward greener alternatives.
Flexibility
•Multi-Temp Capability: The SPECTRUM model supports diverse cargo in a single vehicle, reducing the need for multiple trucks.
•Compact Design: The slim profile improves vehicle maneuverability and aesthetics, a boon for branding-conscious fleets.Buy V-520 Rooftop Truck Unit Online
Buy V-520 Rooftop Truck Unit Online
Maintenance and Support
Thermo King backs the V-520 with a robust support network of nearly 200 dealers across North America, offering factory-trained service and genuine parts. Maintenance is straightforward due to:
•Accessible Components: The rooftop design allows technicians to work without entering the cargo area.
•DSR Controller Diagnostics: Real-time monitoring and error codes simplify troubleshooting.
•Long-Life Fans: Fewer replacements mean lower upkeep costs.
Regular servicing—checking refrigerant levels, compressor function, and condenser cleanliness—ensures optimal performance, especially for high-use fleets.Buy V-520 Rooftop Truck Unit Online
Comparison to Competitors
How does the V-520 stack up against rivals like Carrier’s Supra series or Zanotti’s rooftop units?
•Versus Carrier Supra: The Supra offers similar direct-drive options but lacks the V-520’s slim 6-inch profile, potentially impacting aerodynamics. Carrier units may also have higher standby power ratings, but Thermo King’s dealer network provides a service edge.
•Versus Zanotti: Zanotti units are competitive in price and weight, but the V-520’s multi-temp SPECTRUM variant and advanced features like Jet Cool give it an edge for complex applications.
The V-520’s balance of capacity, efficiency, and support makes it a premium choice, though its initial cost may exceed budget-focused alternatives.
Challenges and Limitations
Buy V-520 Rooftop Truck Unit Online
•Temperature Limits: Non-MAX units (R-134A) can’t operate below 25°F, limiting their use for deep-frozen goods.
•Upfront Cost: Advanced features like electric standby and multi-temp capability increase the price, potentially deterring smaller operators.Buy V-520 Rooftop Truck Unit Online
•Installation: Rooftop mounting requires precise vehicle compatibility, and retrofitting older vans may pose challenges.
The V-520 in the Context of 2025 Trends
As of March 9, 2025, the V-520 aligns with key industry shifts:
•E-Commerce Growth: Last-mile delivery demands compact, efficient refrigeration, which the V-520 delivers.
•Sustainability Pressure: Stricter emissions laws favor its low-impact design.
•Technology Integration: The DSR controller supports telematics, a growing trend for fleet management.
Buy V-520 Rooftop Truck Unit Online
The Thermo King V-520 Rooftop Truck Unit exemplifies innovation in transport refrigeration, blending power, efficiency, and adaptability into a slim, rooftop package. Its design caters to modern logistics needs—whether keeping groceries fresh, drugs viable, or flowers vibrant—while offering cost savings and environmental benefits. Though not without limitations, its strengths make it a cornerstone for fleets navigating the complexities of 2025’s cold chain landscape. For businesses seeking reliability and versatility, the V-520 stands as a testament to Thermo King’s legacy of excellence.Buy V-520 Rooftop Truck Unit Online
The Thermo King V-520 Rooftop Truck Unit
Introduction to the V-520 Rooftop Truck Unit
The Thermo King V-520 Rooftop Truck Unit represents a pinnacle of engineering in the realm of transport refrigeration, tailored for medium to large vans and body-on-chassis vehicles. Introduced as part of Thermo King’s V-Series, this direct-drive unit addresses the evolving demands of the cold chain logistics industry, where precision, efficiency, and adaptability are non-negotiable. Launched to serve a market increasingly driven by e-commerce, urban delivery, and regulatory pressures, the V-520 has carved out a niche with its rooftop design, powerful cooling capacity, and innovative features.
Buy V-520 Rooftop Truck Unit Online
As of March 9, 2025, the global transportation sector is witnessing unprecedented growth in refrigerated transport needs. The rise of online grocery shopping, pharmaceutical distribution (especially post-pandemic), and sustainable logistics practices has amplified the importance of units like the V-520. Its ability to maintain strict temperature control—whether for fresh produce, frozen goods, or multi-temperature loads—makes it a vital asset for fleet operators. This expanded essay delves into the V-520’s design intricacies, technical prowess, practical applications, competitive standing, and its role in shaping the future of refrigerated transport.Buy V-520 Rooftop Truck Unit Online
Design and Features of the V-520 Rooftop Truck Unit
The V-520’s rooftop configuration is a deliberate departure from traditional nosemount or under-mount refrigeration units, offering both functional and aesthetic advantages. Standing at just 6 inches above the vehicle roof (for non-standby models), it minimizes aerodynamic drag while preserving interior cargo space—a critical consideration for vans with reach-in side compartments. This design reflects Thermo King’s commitment to optimizing vehicle utility without compromising refrigeration performance.
Key Components in Detail
1.Compressor Technology:
•The standard TK-16 compressor, driven by the vehicle’s engine, delivers reliable cooling with a capacity suited for moderate loads. Its direct-drive nature eliminates the complexity and emissions of a separate diesel engine, aligning with modern sustainability goals.
•The optional TK-312 reciprocating compressor, available for MAX and SPECTRUM models, boosts performance for heavier refrigeration demands. This upgrade enhances durability and efficiency, particularly in high-ambient conditions or for deep-frozen applications.
•Both compressors benefit from Thermo King’s Jet Lube technology (in MAX models), which ensures consistent lubrication under variable loads, and Jet Cool, an injection cooling system that prevents overheating during prolonged operation.
Buy V-520 Rooftop Truck Unit Online
2.Refrigerant Systems:
•R-134A: Used in standard V-520 units, this refrigerant is optimized for fresh applications (e.g., produce, dairy) with a temperature floor of 25°F. While effective, its limitation in sub-zero scenarios restricts its use for frozen goods.
•R-452A: Adopted in MAX and SPECTRUM variants, this refrigerant supports temperatures down to -20°F, making it ideal for frozen and multi-temp applications. With a lower global warming potential (GWP) than its predecessor R-404A, R-452A reflects Thermo King’s response to environmental regulations like the EU F-Gas Directive and U.S. EPA standards.Buy V-520 Rooftop Truck Unit Online
•The transition to R-452A also positions the V-520 as a forward-thinking choice, anticipating stricter refrigerant phase-outs expected by the late 2020s.
3.Controller and Interface:
•The Direct Smart Reefer (DSR) controller is the V-520’s brain, offering precise temperature regulation, real-time diagnostics, and customizable settings. Its intuitive interface reduces driver training time, while its diagnostic capabilities—accessible via Thermo King’s service tools—streamline maintenance.
•The optional in-cab adaptor box relocates the controller to the dashboard, integrating refrigeration controls with the vehicle’s operational hub. This feature enhances driver convenience, especially on multi-stop routes where frequent adjustments are needed.
4.Condenser and Fan Assembly:
•The V-520’s condenser is paired with long-life fans engineered for minimal maintenance. Constructed from durable materials, these fans withstand harsh weather and road vibrations, ensuring consistent airflow across the condenser coils.
•The lightweight design—achieved through advanced alloys and compact engineering—reduces the unit’s overall weight, improving fuel economy and vehicle payload capacity.
Variants and Customization
The V-520 lineup includes three primary configurations:
•V-520 Standard: Targets fresh goods with a focus on simplicity and efficiency. It’s the baseline model, ideal for small to medium fleets with straightforward cooling needs.
•V-520 MAX: Boosts cooling capacity and adds hot gas heating, catering to frozen applications and regions with extreme climates. The heating option, powered by the refrigerant cycle, ensures defrosting and temperature stability in sub-zero conditions.
•V-520 SPECTRUM: The most versatile variant, designed for multi-temperature zones within a single cargo area. Using advanced ducting and zoning technology, it allows operators to transport frozen, chilled, and ambient goods simultaneously—a game-changer for mixed-load deliveries.
Advanced Features
Buy V-520 Rooftop Truck Unit Online
•SmartPower Electric Standby: Available in 230 VAC single-phase or three-phase options, this feature enables the V-520 to switch to grid power when parked, reducing engine idling and emissions. It’s particularly valuable in urban depots with noise and pollution restrictions.
•Door Switch Integration: A programmable feature shuts off the refrigeration cycle when cargo doors open, preventing cold air loss, then restarts it automatically. This reduces energy waste—a critical advantage for last-mile delivery with frequent stops.Buy V-520 Rooftop Truck Unit Online
•Telematics Compatibility: While not standard, the DSR controller supports integration with Thermo King’s TracKing telematics platform, offering remote monitoring of temperature, unit status, and fuel use. This aligns with the 2025 trend of data-driven fleet management.
Technical Specifications Expanded
The V-520’s performance hinges on its ability to deliver robust cooling and heating across diverse conditions. Here’s a deeper look at its specs (based on Thermo King’s typical data, adjusted for clarity):
Cooling Capacity (MAX Model, R-404A or R-452A, Truck Engine)
•35°F (2°C): 15,500 BTU/hr—sufficient for fresh produce like fruits and vegetables.
•0°F (-18°C): 8,200 BTU/hr—ideal for frozen meats or ice cream.
•-20°F (-29°C): 5,000 BTU/hr—handles deep-frozen goods like seafood or medical supplies.
Electric Standby Capacity (MAX Model, 230V)
•35°F: 10,400 BTU/hr—a 33% drop from engine mode, reflecting standby’s efficiency trade-off.
•0°F: 6,600 BTU/hr—still robust for frozen loads during short-term stops.
•-20°F: 3,500 BTU/hr—adequate for maintaining deep freeze in controlled settings.
Buy V-520 Rooftop Truck Unit Online
Heating Capacity (MAX with Hot Gas Option)
•35°F ambient to cargo temp: Up to 7,500 BTU/hr, ensuring defrost and warmth in cold climates.
Electrical and Weight Specs
•Voltage: 12VDC or 24VDC for non-standby; 230V standby adds versatility.
•Weight: Approximately 175 lbs (non-standby) to 225 lbs (with standby), lightweight for its class.
•Airflow: Up to 1,000 CFM, ensuring uniform temperature distribution.
These metrics underscore the V-520’s ability to adapt to varying payloads and climates, though its standby mode sacrifices some power for sustainability—a trade-off fleet managers must weigh.
Applications in Modern Logistics: Case Studies and Scenarios
The V-520’s versatility shines in real-world applications, particularly as logistics evolves in 2025. Here are expanded examples:
1.Food Delivery:
•Scenario: A regional grocery chain in Texas uses V-520 SPECTRUM units to deliver frozen pizzas, chilled dairy, and ambient snacks in one truck. The multi-temp capability cuts fleet size by 20%, saving $50,000 annually in fuel and maintenance.
•Benefit: The door switch feature reduces cooling loss during 15 daily stops, boosting efficiency by 10%.
2.Pharmaceutical Transport:
•Scenario: A Midwest distributor transports vaccines at 35°F and biologics at 0°F using V-520 MAX units. The DSR controller logs temperature data, ensuring compliance with FDA regulations.
•Benefit: Electric standby at warehouses eliminates engine idling, cutting CO2 emissions by 1.5 tons per truck yearly.
3.Floral Distribution:
•Scenario: A California florist uses V-520 Standard units for urban deliveries. The slim rooftop design fits low-clearance routes, while quiet operation complies with city noise ordinances.
•Benefit: Long-life fans reduce replacement costs by 30% over three years.
4.Catering and Events:
•Scenario: A New York catering company equips vans with V-520 MAX units for wedding deliveries. Hot gas heating keeps soups warm, while cooling preserves desserts.
•Benefit: Multi-functionality reduces reliance on separate hot and cold vehicles.Buy V-520 Rooftop Truck Unit Online
Buy V-520 Rooftop Truck Unit Online
These cases illustrate the V-520’s role in optimizing operations across industries, particularly in urban and regulatory-heavy environments.
Benefits of the V-520 Rooftop Truck Unit: A Deeper Dive
Efficiency and Cost Savings
•Fuel Efficiency: Direct-drive operation leverages the vehicle’s engine, avoiding the 2-3 gallons/hour consumption of diesel units. Electric standby further cuts costs at $1.50-$2.00/hour versus $4.00-$5.00 for engine runtime (based on 2025 U.S. fuel prices).
•CARB Compliance: California’s TRU rules mandate low-emission upgrades by 2026. The V-520’s zero-emission direct-drive mode avoids $10,000+ retrofits.
•Operational Savings: Door switch integration saves 5-7% on fuel for high-stop routes, per Thermo King studies.Buy V-520 Rooftop Truck Unit Online
Durability and Reliability
•Component Longevity: Fans rated for 10,000+ hours outlast competitors by 20%, reducing downtime.
•Extreme Conditions: Jet Cool maintains compressor function in 110°F ambient heat, critical for southern U.S. summers.
Environmental Impact
•Noise Reduction: At 60-65 dB, it’s quieter than diesel units (70-75 dB), meeting urban noise caps.
•Emissions: HVO fuel compatibility cuts lifecycle CO2 by up to 90% versus diesel, per Thermo King’s 2024 trials.
•Refrigerant Shift: R-452A’s GWP of 2,140 (versus R-404A’s 3,922) aligns with global sustainability mandates.
Flexibility
Buy V-520 Rooftop Truck Unit Online
•Multi-Temp Innovation: SPECTRUM’s zoning rivals standalone units costing 50% more.
•Aesthetic Edge: The slim profile enhances vehicle branding, a subtle but real advantage for customer-facing fleets.Buy V-520 Rooftop Truck Unit Online
Maintenance and Support: Operational Insights
Thermo King’s 200+ North American dealers provide a safety net for V-520 users. Maintenance tasks include:
•Refrigerant Checks: Every 6 months to prevent leaks, costing $100-$150 per service.
•Compressor Care: Annual Jet Lube inspections ($200) ensure peak performance.
•Fan Cleaning: Quarterly to maintain airflow, a $50 DIY task or $100 via dealers.
The DSR controller’s diagnostics cut troubleshooting time by 40%, per fleet manager feedback, while telematics integration (optional) offers predictive maintenance alerts.
Comparison to Competitors: Market Analysis
•Carrier Supra 560: Offers 16,000 BTU/hr at 35°F (versus V-520’s 15,500), but its 8-inch profile increases drag. Carrier’s standby is stronger (12,000 BTU/hr at 35°F), but Thermo King’s service network is broader.
•Zanotti SFZ238: Lighter at 150 lbs and cheaper by 15%, but lacks multi-temp options and Jet Cool, limiting its scope.
•Market Position: The V-520’s premium features justify a 10-20% higher cost ($12,000-$15,000 installed) for fleets prioritizing reliability over budget.
Challenges and Limitations: Critical Evaluation
•Temperature Constraints: R-134A’s 25°F limit excludes deep-freeze use, pushing buyers to MAX models (+$2,000).
•Cost Barrier: Small operators may opt for $8,000-$10,000 alternatives, despite long-term V-520 savings.
•Installation Complexity: Retrofitting requires roof reinforcement ($500-$1,000), a hurdle for older vans.
The V-520 in 2025 Trends: Future Outlook
•E-Commerce Surge: Online grocery sales, up 15% YoY (Statista, 2025), demand V-520’s urban-friendly design.
•Sustainability Push: EU and U.S. net-zero goals by 2050 favor its low-emission features.
•Tech Evolution: Telematics and AI-driven cooling optimization (potential upgrades) could extend its lifespan.Buy V-520 Rooftop Truck Unit Online
Buy V-520 Rooftop Truck Unit Online
The Thermo King V-520 Rooftop Truck Unit is more than a refrigeration tool—it’s a strategic asset for 2025’s cold chain. Its blend of efficiency, durability, and innovation meets the moment, from urban delivery to regulatory compliance. While not flawless, its strengths position it as a leader in a crowded field, ready to evolve with the industry’s future.Buy V-520 Rooftop Truck Unit Online
Unit Specs
Temperature Guide
|
V-520 RT
|
35°F
|
0°F
|
-20°F
|
|---|---|---|---|
|
Truck Engine Cooling Capacity (BTU/hr)
|
12,200
|
—
|
—
|
|
Electric Standby Cooling Capacity (BTU/hr)
|
10,000
|
—
|
—
|
|
V-520 RT MAX & SPECTRUM
|
35°F
|
0°F
|
-20°F
|
|---|---|---|---|
|
Truck Engine Cooling Capacity (BTU/hr)
|
15,500
|
8,200
|
5,000
|
|
Electric Standby Cooling Capacity (BTU/hr)
|
10,400
|
6,600
|
3,500
|
Non-MAX units (R-134A) are rated @ 0o F but not allowed to operate below 25o F due to system protection. All standby capacities rated w/230 VAC option.
|
CFM
|
|
|---|---|
|
Evap Airflow
|
1,415
|
|
Engine
|
Electric
|
|
|---|---|---|
|
Coolant Heating (BTU/hr)
|
—
|
—
|
|
Hot Gas Heating (BTU/hr)
|
14,000
|
8,000
|
Reviews (0)
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
BUY 2020 THERMO KING C600 ONLINE
BUY 2020 THERMO KING C600 ONLINE
Year
2020
Manufacturer
THERMO KING
VIN
6001324492
Condition
Used
Stock Number
C-600
Description
Price Included Installation! 2020 TK C-600 9k hours, runs and cools as it should. We bought a group of used trailers but run all Carriers. I pulled this unit and installed a Carrier. Unit is in great shape and has be check out by our local Carrier Dealer.
Category Specific
Reefer Hours
9,001
Buy EliteLINE® Container Refrigeration Unit Online
Buy EliteLINE® Container Refrigeration Unit Online
EliteLINE® Container Refrigeration Unit
The first scroll compressor specially built for container refrigeration.
Our designers didn’t compromise EliteLINE unit performance. Rather than modify existing scroll technology from less-demanding air conditioning applications, we built a scroll compressor exclusively for container refrigeration. Our innovative, exclusive EliteLINE container refrigeration system features Carrier’s patented scroll wrap geometry. It is the specially built, single-scroll platform that uses non-ozone-depleting HFC-134a. It delivers the most advanced protection for your sensitive cargoes.
Using patented Carrier scroll compressor design, the EliteLINE is specially built to meet the extreme performance demands of oceanic container refrigeration.
- The inner chamber of the scroll compressor features patented wrap geometry.
- The walls are tapered, making them thicker than the standard air conditioning spiral.
The higher-strength wall design maximizes efficiency and reliability resulting in higher cooling capacity, using non-ozone-depleting HFC-134a.
- High capacity from an exclusive, single HFC-134a scroll compressor.
- Patented state-of-the-art electrostatically coated copper fin, tube, and tube sheet condenser coil for superior corrosion protection.
- Evaporator coil with copper tubing and aluminum fins, treated for improved condensate drainage.
- Precisely aligned, high efficiency evaporator fan motors and vane-axial fans reduce fan heat and improve cooling capacity.
- Lightweight, corrosion-proof composite condenser fan.
- Micro-Link® 3 microprocessor controller.
- Auto defrost takes the guesswork out of setting defrost intervals while providing up to 40% power savings.
| Temperature | Watts | Btu/hr |
|---|---|---|
| 2°C (35°F) | 10,550 | 36,000 |
| -18°C (0°F) | 6,160 | 21,000 |
| -29°C (-20°F) | 3,960 | 13,500 |
Buy Thermo king e1000 Unit Online
Buy Thermo king e1000 Unit Online
e1000 All-Electric Reefer Unit for Class 5 – 7 Trucks
Part of the Thermo King evolve™ portfolio
When you’re working toward electrification and decarbonization goals, Thermo King’s e1000 is a large capacity electric reefer truck unit that meets regulations for zero emissions, including CARB, while providing reliable refrigeration for food and other temperature sensitive goods during distribution. It’s a solution that makes sustainability attainable for your refrigerated fleet.
Buy Thermo King MD-200 Online
Buy Thermo King MD-200 Online
The Thermo King MD-200 is a refrigeration unit made for medium-sized delivery trucks, like those 12 to 20 feet long, used to keep food, flowers, or medicines cold or frozen during transport. It’s part of Thermo King’s MD (Medium Duty) series, built by a company famous for refrigeration since the 1930s. The MD-200 is perfect for local or regional deliveries—think grocery runs or catering—not big trailers crossing the country. It’s tough, reliable, and still popular in 2025, especially for truck owners who want something affordable and easy to fix.
This unit runs on a small diesel engine, the Yanmar TK370, which puts out about 19 horsepower—enough to cool a truck without guzzling fuel. It uses R-404A refrigerant to chill the air, powered by a Thermo King X214 compressor that’s simple and sturdy. You can set the temperature anywhere from -20°F (super cold for frozen stuff) to 80°F (warm enough for fresh goods). It cools fast—around 10,000 BTU per hour at 35°F, or 6,000 BTU at 0°F—and can heat up to 6,000 BTU to protect cargo in winter. Fans inside push about 1,500-2,000 cubic feet of air per minute, keeping the whole truck evenly cold.
The MD-200 comes in two versions: the MD-200 30 (diesel only) and the MD-200 50 (diesel plus electric standby). With electric standby, you can plug it into a power outlet (230V or 460V) when parked, saving fuel and making it quieter—great for city rules against idling. A control box, usually the Thermoguard or a fancier SR-2/SR-3 screen, lets the driver pick the temperature and check if everything’s working. Features like CYCLE-SENTRY turn the engine off when it’s cold enough, cutting fuel use by up to half (0.5-1 gallon per hour).
It’s built tough with a lightweight plastic shell that doesn’t rust, sized at about 60 inches wide, 24 inches deep, and 30 inches tall, weighing 800-1,000 pounds. The engine and parts are easy to reach for repairs, and Thermo King has over 200 dealers worldwide for support. It’s not super quiet—around 65-70 decibels on diesel, 55-60 on electric—but you can add a noise kit to hush it up.Buy Thermo King MD-200 Online
Buy Thermo King SB 230 Power Unit Online
Buy Thermo King SB 230 Power Unit Online
Key Features
•SmartPower Electric Standby: An optional electric motor (15-20 hp) lets the unit run on 230V or 460V grid power when parked, cutting fuel costs and emissions. A high-output version boosts cooling capacity slightly for demanding conditions.
•CYCLE-SENTRY: This start-stop mode cycles the engine off when the setpoint is reached, saving 20-30% on fuel during lighter loads or stable climates.
•Defrost System: Hot gas from the compressor clears evaporator ice buildup, triggered manually or automatically via the SR-3 controller—essential for subzero operations.
•Acoustic Package: An optional sound-dampening kit reduces noise from ~68 dB(A) to the low 60s, ideal for urban deliveries.
•EMI-3000: Extended maintenance intervals (up to 3,000 hours) with premium oil and filters lower service frequency and costs.
Performance Capabilities
The SB-230’s cooling capacity varies by mode and conditions:
•Diesel Operation: At a 35°F setpoint and 100°F ambient temperature, it delivers ~23,000 BTU/hr; at 0°F setpoint, ~13,000 BTU/hr.
•Electric Standby: Similar outputs, slightly higher with the high-output option (exact figures depend on configuration).
•Heating: Approximately 12,000 BTU/hr, sufficient for frost protection in winter.
Airflow (~3,500 CFM) ensures uniform cooling across large trailers, while the ETV and CYCLE-SENTRY enhance efficiency. Fuel consumption averages 1-2 gallons per hour on diesel, less in stop-start mode. Noise levels hover around 65-70 dB(A) without the acoustic package—moderate for a diesel TRU.
Carrier Undermount Genset For Sale Online
Carrier Undermount Genset For Sale Online
Standard Features
- V2403-CR-E4B, 4-cylinder, water-cooled, 2.4-liter, Common rail injection diesel engine
- Nominal 15 kW high-efficiency permanent magnet generator
- Controller with enhanced FuelWise functionality
- 68–gallon steel tank (tank options 50-gallon steel, 50-gallon aluminum, 80-gallon aluminum)
- All-steel fabricated frame construction with four-point PlateMount system
- High-efficiency dry element air cleaner
- Full-flow spin-on oil filter with internal bypass
- Integral fuel filter with water separator
- Fuel heater Stainless steel exhaust
- Stainless steel hardware
- Driver-side controls
- Large aluminum service access door
- Battery access door
- Forklift pockets allow mounting from either side
- 12V DC maintenance-free battery
- Safety stop controls for low oil pressure, high water temperature
- Frame and sheet metal components powder-coated for durability Patented E-coat tube and fin radiator
- Large oil pan capacity extends running hours between oil changes
-
Carrier Undermount Genset For Sale Online
Thermo King SB230 Unit For Sale Online
Thermo King SB230 Unit For Sale Online
Key Features
•SmartPower Electric Standby: An optional electric motor (15-20 hp) lets the unit run on 230V or 460V grid power when parked, cutting fuel costs and emissions. A high-output version boosts cooling capacity slightly for demanding conditions.
•CYCLE-SENTRY: This start-stop mode cycles the engine off when the setpoint is reached, saving 20-30% on fuel during lighter loads or stable climates.
•Defrost System: Hot gas from the compressor clears evaporator ice buildup, triggered manually or automatically via the SR-3 controller—essential for subzero operations.
•Acoustic Package: An optional sound-dampening kit reduces noise from ~68 dB(A) to the low 60s, ideal for urban deliveries.
•EMI-3000: Extended maintenance intervals (up to 3,000 hours) with premium oil and filters lower service frequency and costs.
Performance Capabilities
The SB-230’s cooling capacity varies by mode and conditions:
•Diesel Operation: At a 35°F setpoint and 100°F ambient temperature, it delivers ~23,000 BTU/hr; at 0°F setpoint, ~13,000 BTU/hr.
•Electric Standby: Similar outputs, slightly higher with the high-output option (exact figures depend on configuration).
•Heating: Approximately 12,000 BTU/hr, sufficient for frost protection in winter.
Airflow (~3,500 CFM) ensures uniform cooling across large trailers, while the ETV and CYCLE-SENTRY enhance efficiency. Fuel consumption averages 1-2 gallons per hour on diesel, less in stop-start mode. Noise levels hover around 65-70 dB(A) without the acoustic package—moderate for a diesel TRU.
Reviews
There are no reviews yet.
