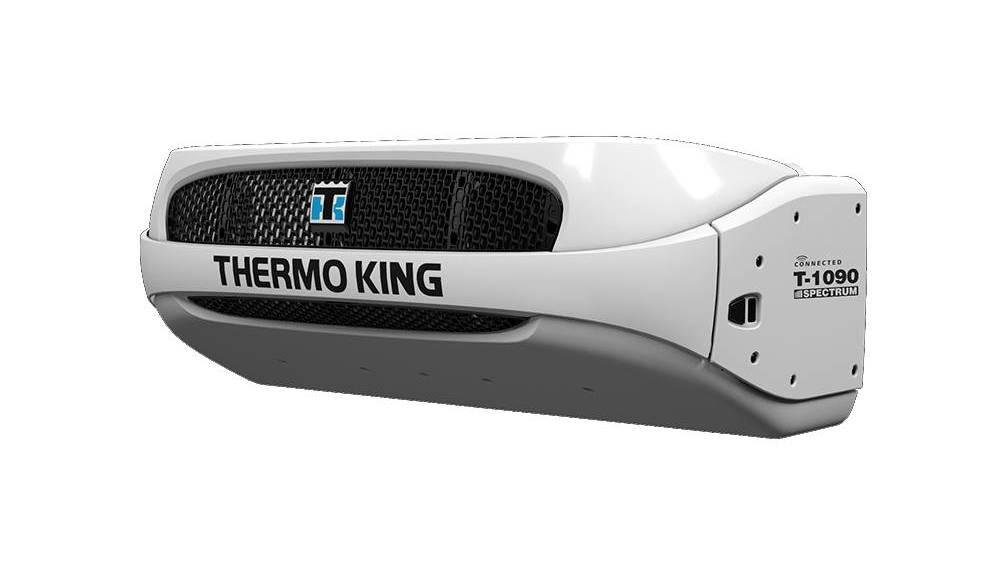

Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
DESCRIPTION
Premium HMI Included | ConnectedSuite™ Telematics Built-in | Delivering the capacity, reliability and uptime that fit your demanding schedule, the new T-90 Series of self-powered truck refrigeration units truly offer MORE.
The T-1090 Spectrum is Thermo King’s next generation multi-temp refrigeration unit for straight trucks. Featuring industry leading capacity, maintenance intervals, temp control, as well as the most advanced technology you can buy.
FEATURES
- 2,000 hour maintenance interval – the longest in the industry
- Premium HMI – the easiest to use and most power control interface
- Integrated Connected Suite Hardware – streamline your operations at the flip of a switch
- Opti-Set Plus – Optimize unit settings and parameters to deliver what matters most to you; temp control, fuel savings, operator error elimination
- Industry leading capacity – gives you faster pull-down, faster recovery after door openings, less fuel burned and fewer engine run hours; delivering results that matter to your bottom line
RETURN AIR TO EVAPORATOR
- Engine Power BTU/hr 35°F (Up to): 34,000
- Engine Power BTU/hr 0°F (Up to): 22,000
- Engine Power BTU/hr -20°F (Up to): 13,000
- Electric Power BTU/hr 35°F (Up to): 28,500
- Electric Power BTU/hr 0°F (Up to): 16,500
- Electric Power BTU/hr -20°F (Up to): 9,000
HEATING CAPACITY (35°F/0°F AMBIENT)
- Engine power (BTU/hr): 19,000
- Electric power (BTU/hr): 13,500
AIRFLOW: ON HIGH SPEED ENGINE OPERATION
- Airflow volume @ 0 Pa static pressure: N/A
WEIGHT (CONDENSING UNIT)
- Standard: cooling/heating on engine operation: 883 lbs
- With SmartPower electric standby: cooling/heating on engine/electric standby: 992 lbs
ENGINE
- Type: 3 cylinder, liquid cooled
- Model: TK 380
- Rating: 16.2 hp
- Maintenance Interval: 2000 hrs
COMPRESSOR
- Type: Lightweight aluminum alloy
- Model: X-430
- Displacement: 30 cu. in.
ELECTRIC STANDBY MOTOR (OPTION 1)
- Voltage / phase / cycles: 200 – 230 / 3 / 60
- Rating: 12 hp
ELECTRIC STANDBY MOTOR (OPTION 2)
- Voltage / phase / cycles: 460 / 3 / 60
- Rating: 12 hp
REFRIGERANTS
- Type: R-404A zero Ozone Depletion Potential (ODP), internationally approved
- Charge: N/A
NOTES:
Refrigeration capacity: System net cooling capacity at 100°F ambient temperature and high speed engine/60 Hertz electric power
CAPACITIES
| Refrigeration Capacity | 34,000 BTU/hr |
| Heating Capacity | Engine Power: 19,000 BTU/hr; Electric Power: 13,500 BTU/hr |
ENGINE
| Engine Type | 3 cylinder, liquid cooled |
| Engine Model | TK 380 |
| Engine Rating | 16.2 hp |
| Maintenance Interval | 2000 hrs |
COMPRESSOR
| Compressor Type | Lightweight aluminum alloy |
| Compressor Model | X-430 |
| Compressor Displacement | 30 cu. in. |
GENERAL
| Weight | Standard: 883 lb. |
| Dimensions | 74.3 in. (1887 mm) x 36.2 in. (919 mm) x 27.1 in. (668 mm) |
Description
Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Introduction to the Thermo King T-1090 Spectrum® Multi-Temp Unit
The Thermo King T-1090 Spectrum® Multi-Temperature Unit is a flagship offering within the T-90 Series, a line of self-powered diesel refrigeration units designed for straight trucks. Manufactured by Thermo King, a division of Trane Technologies, this unit represents the pinnacle of multi-zone refrigeration technology, catering to operators who need to transport diverse perishable goods at varying temperatures within a single vehicle. Introduced as part of Thermo King’s ongoing commitment to innovation—tracing back to its founding in 1938—the T-1090 Spectrum is tailored for Class 5–7 straight trucks, typically with box lengths of 20 to 28 feet, making it ideal for regional delivery fleets.
The multi-temperature capability sets the T-1090 Spectrum apart, allowing up to three distinct temperature zones (e.g., frozen at 0°F, chilled at 35°F, and ambient) within the cargo box. This flexibility addresses the evolving demands of industries like food distribution, pharmaceuticals, and mixed-load logistics, where precise temperature control across multiple compartments is critical. As of March 12, 2025, the T-1090 Spectrum remains a leader in its category, driven by advancements in telematics, fuel efficiency, and regulatory compliance, positioning it as a vital tool in the $15 billion refrigerated transport market.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
This exploration delves into the unit’s engineering, features, operational advantages, and real-world applications, providing a thorough understanding of its role in modern logistics.
Design and Engineering
Core Components
The T-1090 Spectrum is a self-contained refrigeration system powered by a TK380F Tier 4 diesel engine, a three-cylinder unit delivering 19.3 continuous horsepower (14.4 kW) at 2,425 RPM. This engine meets EPA Tier 4 emissions standards, balancing performance with environmental compliance. Unlike direct-drive units reliant on a truck’s engine, the T-1090 Spectrum’s self-powered design ensures consistent cooling regardless of vehicle operation, a key advantage for multi-stop delivery routes.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
The refrigeration system centers on the X-430P reciprocating compressor, a four-cylinder design with a 30-cubic-inch (492 cc) displacement. This compressor, an evolution of Thermo King’s X-series, offers enhanced reliability and efficiency over predecessors, with fewer moving parts than scroll compressors (though Thermo King also uses scrolls in other models). Paired with R-404A refrigerant (GWP 3,922), the system achieves cooling capacities of approximately 17,000–19,000 BTU/h at 0°F and 22,000–24,000 BTU/h at 35°F (100°F ambient, high-speed engine), though exact figures vary by zone configuration.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online

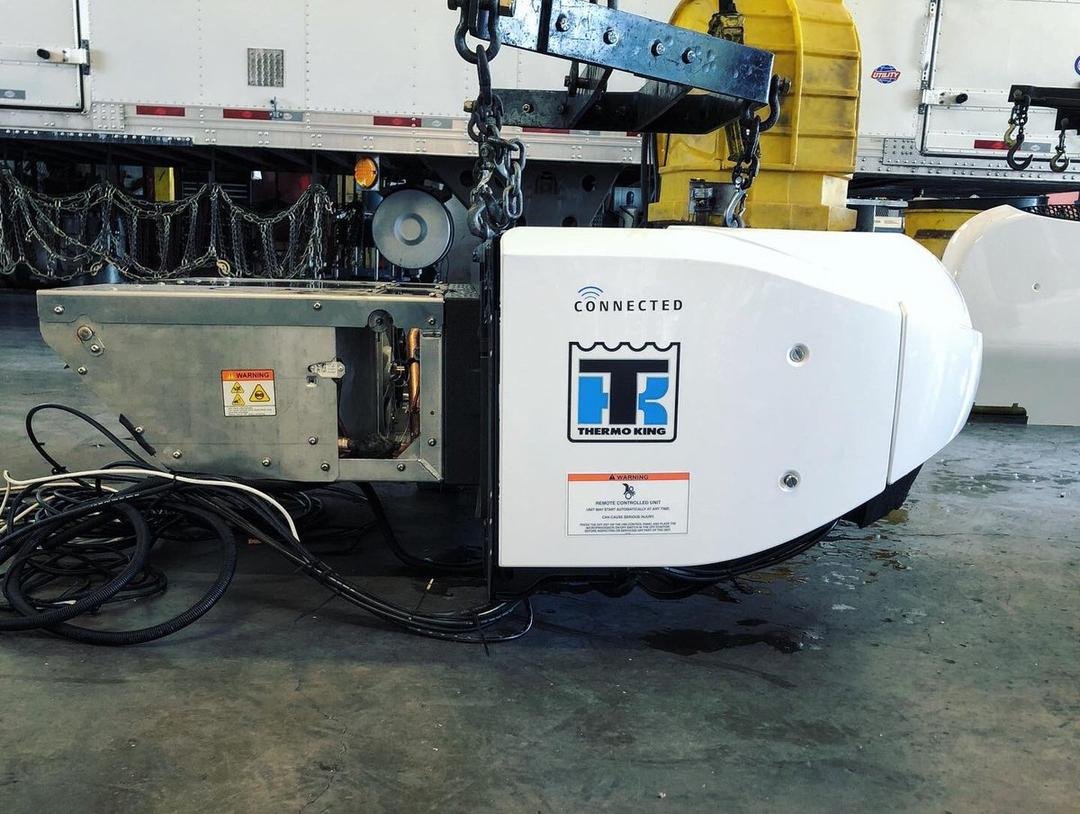

The multi-temp functionality relies on a host condenser unit mounted on the truck’s front exterior and up to three remote evaporators installed inside the cargo box. Each evaporator (e.g., Thermo King’s MD- or TD-series) features high-output fans (1,200–1,500 CFM) and heat exchange coils, enabling independent temperature control per compartment. Insulated bulkheads or curtains separate zones, maintaining thermal integrity.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Buy Thermo King T-590 Unit Online
Controller and Interface
The T-1090 Spectrum features a premium Human-Machine Interface (HMI) controller, standard across the T-90 Series. Located in the cab, this controller uses a backlit LCD display with symbolic icons and multilingual support, simplifying operation for drivers. It manages multiple zones simultaneously, displaying setpoints (e.g., -20°F, 35°F) and actual temperatures for each compartment, with 0.1°F precision. Programmable keys allow quick mode switches—Continuous Run, Cycle-Sentry, or defrost—while on-screen prompts reduce errors.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Key technologies include:
•QuickTemp: An electronic throttling valve (ETV) optimizes refrigerant flow, boosting pull-down speed by 30% (e.g., 80°F to 0°F in 25–30 minutes per zone) and recovery by 25%, cutting fuel use by up to 35% and engine runtime by 25%.
•Cycle-Sentry Mode: Automatically starts/stops the unit to maintain setpoints, saving 20–30% fuel in low-demand scenarios (e.g., maintaining 35°F in a half-loaded zone).
•Fuel Saver II: Adjusts engine RPMs for efficiency, adding 5–10% fuel savings.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Telematics Integration
Standard ConnectedSuite™ telematics hardware, paired with TracKing® Cellular (4G LTE), provides real-time monitoring of temperature, location, door events, and unit diagnostics. Data logs (every 15 minutes) support FSMA compliance, while remote access via web or mobile app enables fleet managers to address issues—like a high-pressure fault (code P-053)—without delay. Bluetooth connectivity via the Thermo King Reefer App offers drivers on-site diagnostics.
Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Construction and Durability
The unit’s exterior combines aluminum and composite materials, resisting corrosion from road salt and weather. The condenser (42”H x 66”W x 24”D, ~450 lbs) is designed for aerodynamic efficiency, while internal components—like the clutch (isolating the engine during electric standby)—are sealed against moisture. Sound insulation keeps noise at 65–70 dB (10 ft), reducible to 60–62 dB with an optional kit.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Key Features and Benefits
Multi-Temperature Capacity
The T-1090 Spectrum’s ability to maintain distinct zones (e.g., -20°F for ice cream, 0°F for meat, 35°F for produce) in a 20–28 ft box (800–1,200 cu ft) is its defining feature. Each zone’s evaporator delivers tailored cooling, with rapid pull-down (e.g., 30 minutes from 70°F to 0°F) and recovery (5–10 minutes post-door opening). This reduces spoilage risk during frequent stops, burning less fuel (~0.4–0.6 gallons/hour) than running separate single-temp units.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Extended Maintenance Intervals
A 2,000-hour maintenance interval—the longest in its class—lowers downtime by 20–30% versus 1,000-hour competitors. Tasks (oil/filter changes, belt checks) occur every 1–2 years at 1,000–1,500 hours/year, supported by synthetic oil options (SAE 5W-40) in the Arctic Package.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Fuel Efficiency and Sustainability
QuickTemp, Cycle-Sentry, and electronic door switches optimize fuel use, dropping consumption to 0.3–0.5 gallons/hour in mixed modes (vs. 0.7–1.0 gallons/hour continuous). SmartPower electric standby (230V) cuts fuel by 75% when stationary (e.g., 0.1–0.2 gallons/hour equivalent), reducing CO2 by 2–3 tons annually per unit. ThermoLite® solar panels (40W or 110W) charge batteries at 3–9 amps, extending life by 6–12 months and supporting lift gates (110W).
Noise Reduction
Base noise (65–70 dB) suits rural routes, but the optional noise-reduction kit (baffles, dampeners) lowers it to 60–62 dB, meeting urban limits (e.g., 60 dB in NYC).Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Cold Weather Performance
The Arctic Package (snow covers, synthetic oil, block heater) ensures -30°F operation, with starts in 5–10 seconds at -20°F, critical for northern climates.
Cargo Protection and Compliance
Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
OptiSet Plus customizes settings per zone (e.g., 2°F differential, Cycle-Sentry on), loadable by dealers. TouchPrint Premium adds dual sensors, a status light, and door switch, logging data for audits (PDF/CSV), ensuring compliance with HACCP or GDP standards.
Applications and Market Fit
The T-1090 Spectrum targets:
1.Food Distribution: Handles mixed loads (e.g., 1,000 lbs frozen, 1,500 lbs fresh) for grocers or restaurants.
2.Pharmaceuticals: Maintains 2–8°C (36–46°F) for drugs alongside frozen samples (-20°F).
3.Catering: Supports events with frozen, chilled, and ambient foods in one truck.
4.Floral and Specialty: Combines 35°F flowers with 0°F perishables.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Its size and capacity suit 20–28 ft trucks, ideal for mid-sized fleets or owner-operators with diverse clients.
Operational Scenarios
Scenario 1: Multi-Stop Grocery Delivery
A 24 ft Freightliner M2 in Atlanta uses a T-1090 Spectrum for 20 daily stops, carrying 1,200 lbs frozen (-20°F), 1,000 lbs meat (0°F), and 800 lbs produce (35°F). QuickTemp pre-cools zones in 25–30 minutes; recovery takes 7–10 minutes per stop. Cycle-Sentry saves 0.3 gallons/hour over 10 hours, cutting fuel costs by $1,200/year ($4/gallon). Telematics flags a door ajar, saving a $10,000 load.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Scenario 2: Pharmaceutical Distribution
A Denver-based 26 ft Hino with a T-1090 Spectrum delivers 500 lbs vaccines (36–46°F) and 300 lbs frozen reagents (-20°F) across 150 miles. The Arctic Package ensures -15°F starts, and SmartPower saves $800/year at a depot. TracKing® logs secure a $75,000 contract.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Comparison to T-90 Series and Competitors
The T-1090 Spectrum (multi-temp, 20–28 ft) exceeds the T-590 (single-temp, 14–18 ft, ~13,000 BTU/h) and T-690 (18–24 ft, ~15,000 BTU/h) in versatility, matching the T-1090 MAX (single-temp, ~19,000 BTU/h) in capacity. Versus Carrier’s Supra 960 (~16,000 BTU/h, multi-temp), it offers superior telematics and maintenance intervals, though Carrier may edge out on noise (60 dB base).Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Industry Context
The refrigerated transport market grows 5–7% annually, driven by e-commerce and cold chain demands. The T-1090 Spectrum’s multi-temp design and connectivity align with these trends, competing with Carrier, Zanotti, and Mitsubishi units.
The Thermo King T-1090 Spectrum® Multi-Temperature Unit stands as a cornerstone of the T-90 Series, a portfolio of diesel-powered refrigeration solutions engineered for straight trucks by Thermo King, a division of Trane Technologies. Since pioneering transport refrigeration in 1938 with the first refrigerated truck unit, Thermo King has built a reputation for innovation, and the T-1090 Spectrum exemplifies this legacy. Designed for Class 5–7 straight trucks—typically featuring box lengths of 20 to 28 feet—this unit offers unparalleled flexibility through its multi-temperature capability, enabling operators to maintain up to three distinct temperature zones within a single cargo space.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
This multi-zone functionality caters to the complex demands of modern logistics, where a single delivery might include frozen goods at -20°F, chilled items at 35°F, and ambient products—all transported simultaneously with precision. Industries such as food distribution, pharmaceuticals, catering, and specialty retail rely on this capability to optimize efficiency and reduce fleet costs. As of March 12, 2025, the T-1090 Spectrum remains a market leader, buoyed by its integration of advanced telematics, fuel-saving technologies, and compliance features, aligning with a refrigerated transport sector projected to grow at 5–7% annually, reaching $20 billion by 2030.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
This comprehensive exploration covers the unit’s design, specifications, features, applications, operational scenarios, maintenance, and competitive landscape, offering an exhaustive resource for understanding its role in today’s logistics ecosystem.
Design and Engineering
Core Components
The T-1090 Spectrum is a self-powered refrigeration system driven by a Thermo King TK380F Tier 4 diesel engine. This three-cylinder, liquid-cooled engine displaces 0.86 liters (52.6 cubic inches) and delivers 19.3 continuous horsepower (14.4 kW) at 2,425 RPM high speed, with a low-speed setting of 1,450 RPM for efficiency. Compliant with EPA Tier 4 Final emissions standards (effective since 2013 for non-road engines), it uses a direct-injection fuel system and electronic governor for precise performance, emitting less than 0.4 g/kW-hr of particulate matter.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
The refrigeration system hinges on the X-430P reciprocating compressor, a four-cylinder unit with a 30-cubic-inch (492 cc) displacement. Operating at engine speed, it achieves a maximum capacity of approximately 19,000 BTU/h at 0°F and 24,000 BTU/h at 35°F (100°F ambient, high speed), though multi-zone configurations split this capacity across compartments. The system uses R-404A refrigerant—a hydrofluorocarbon blend of R-125, R-143a, and R-134a (44%/52%/4%) with a global warming potential (GWP) of 3,922—capable of maintaining temperatures from -20°F to 50°F. While R-404A faces phase-down pressure under environmental regulations (e.g., EPA AIM Act), it remains standard in 2025, with Thermo King exploring lower-GWP alternatives like R-452A for future models.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
The multi-temp design incorporates a host condenser unit (externally mounted) and up to three remote evaporators (e.g., MD-200 or TD-II series) installed inside the cargo box. The condenser features a 400–450 square-inch heat exchange surface and a 12V electric fan (1,800–2,000 CFM), while each evaporator delivers 1,200–1,500 CFM via high-output fans, ensuring even airflow across zones. Insulated bulkheads (R-value 10–15) or flexible curtains separate compartments, maintaining thermal gradients (e.g., 55°F difference between -20°F and 35°F zones).
Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Controller and Interface
The T-1090 Spectrum’s premium Human-Machine Interface (HMI) controller, mounted in the cab, is a hallmark of the T-90 Series. Its backlit LCD display (3.5–4 inches) uses symbolic icons and text in 12 languages, reducing training time for drivers. The interface manages up to three zones, displaying setpoints (e.g., -20°F, 0°F, 35°F) and actual temperatures with 0.1°F precision, alongside alarms (e.g., “Zone 2 High Temp”). Three programmable keys—start/stop, defrost, mode—streamline operation, while a USB port enables data downloads.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Integrated technologies enhance control:
•QuickTemp: An electronic throttling valve (ETV) dynamically adjusts refrigerant flow, accelerating pull-down by 30% (e.g., 80°F to 0°F in 25–30 minutes per zone) and recovery by 25% (e.g., 7–10 minutes post-door opening). This cuts fuel use by 35% (0.6 vs. 0.9 gallons/hour) and engine runtime by 25% (500 vs. 667 hours/year at 2,000 total hours).
•Cycle-Sentry Mode: Starts/stops the unit based on demand, saving 20–30% fuel (e.g., 0.4 vs. 0.6 gallons/hour) when maintaining stable loads.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
•Fuel Saver II: Optimizes RPMs (e.g., 1,800 vs. 2,425), adding 5–10% efficiency (0.05–0.1 gallons/hour savings).
Telematics Integration
The ConnectedSuite™ telematics system, standard with 4G LTE TracKing® Cellular connectivity, provides real-time monitoring via a roof-mounted antenna. Key metrics include:
•Zone temperatures (current/historical, logged every 15 minutes).
•GPS location (accuracy ±10 meters).
•Unit status (runtime, fuel level, fault codes like P-053 for high pressure).
•Door events (with optional switches).Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Fleet managers access this via a web portal or mobile app, enabling remote commands (e.g., initiate defrost) and diagnostics (e.g., low battery voltage at 11.8V). The Thermo King Reefer App offers Bluetooth connectivity for drivers, displaying live data within 30 feet. Data retention supports FSMA compliance, storing 12 months of logs exportable in PDF/CSV.
Construction and Durability
The unit’s exterior combines aluminum (condenser frame) and high-strength composites (panels), weighing ~450 lbs (42”H x 66”W x 24”D). A powder-coated finish resists corrosion, while sealed wiring harnesses (IP67-rated) protect against moisture. The engine compartment uses 2-inch acoustic insulation, yielding 65–70 dB at 10 feet (reducible to 60–62 dB with a noise kit). The clutch isolates the compressor during electric standby, extending belt life (2,000–3,000 hours).Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
%20[frigokit.com]-500x500h.jpg)
Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Key Features and Benefits
Multi-Temperature Capacity
The T-1090 Spectrum’s ability to maintain three zones (e.g., -20°F, 0°F, 35°F) in a 20–28 ft box (800–1,200 cu ft) optimizes load flexibility. For a 3,000-lb mixed load (1,000 lbs frozen, 1,000 lbs chilled, 1,000 lbs fresh), each evaporator delivers tailored cooling—e.g., 6,000–8,000 BTU/h per zone at 0°F. Pull-down takes 25–30 minutes from 70°F, and recovery averages 7–10 minutes after a 2-minute stop, minimizing excursions (e.g., <41°F for USDA fresh goods). This efficiency reduces fuel burn by 20–30% versus multiple single-temp units.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Extended Maintenance Intervals
A 2,000-hour interval—equivalent to 1–2 years at 1,000–1,500 hours annually—cuts downtime by 20–30% versus 1,000-hour units. Maintenance includes oil changes (15W-40 or 5W-40 synthetic, 7 quarts), fuel/air filter swaps (e.g., Thermo King P/N 11-9182), and belt tension checks (10–12 lbs force), all accessible via a hinged panel. Synthetic oil in the Arctic Package extends component life by 10–15% in cold climates.
Fuel Efficiency and Sustainability
QuickTemp, Cycle-Sentry, and door switches drop fuel use to 0.3–0.5 gallons/hour in mixed modes (vs. 0.7–1.0 continuous), saving 200–400 gallons/year at 1,500 hours ($800–$1,600 at $4/gallon). SmartPower electric standby (230V single-phase, 15A) reduces fuel by 75% when plugged in (0.1–0.2 gallons/hour equivalent), cutting CO2 by 2–3 tons annually. ThermoLite® solar panels (40W: 3A, 110W: 9A) charge the 12V battery (100–150 Ah), reducing alternator load and supporting lift gates (500–1,000W).Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Noise Reduction
Base noise (65–70 dB) suits rural routes, but the optional kit (baffles, dampeners) lowers it to 60–62 dB, meeting urban limits (e.g., 60 dB in Chicago). A quiet-run mode (1,450 RPM) further reduces noise by 2–3 dB.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Cold Weather Performance
The Arctic Package ensures -30°F operation with snow covers (preventing coil icing), synthetic oil (low viscosity at -20°F), and a 500W block heater (maintaining 50°F coolant). Starts take 5–10 seconds at -20°F, critical for northern regions.
Cargo Protection and Compliance
OptiSet Plus customizes settings per zone (e.g., 2°F differential, Cycle-Sentry on), loadable via Thermo King’s Wintrac software. TouchPrint Premium adds dual sensors (supply/return air, ±0.5°F accuracy), a tri-color status light (green/red/amber), and a door switch, logging data for FSMA, HACCP, or GDP audits (12-month retention).
Applications and Market Fit
The T-1090 Spectrum targets:
Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
1.Food Distribution: Mixed loads (e.g., 1,500 lbs frozen, 1,200 lbs fresh) for grocers or meal kits.
2.Pharmaceuticals: Vaccines (36–46°F) and frozen samples (-20°F) in one truck.
3.Catering: Frozen/chilled/ambient foods for events (e.g., 1,000 lbs total).
4.Floral and Specialty: Flowers (35°F) with perishables (0°F).Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Its capacity suits 20–28 ft trucks (e.g., Freightliner M2, Isuzu NPR), ideal for mid-sized fleets or owner-operators.
Operational Scenarios and Case Studies
Scenario 1: Multi-Stop Grocery Delivery (Atlanta, GA)
A 26 ft Freightliner M2 with a T-1090 Spectrum delivers 3,500 lbs across 25 stops: 1,200 lbs ice cream (-20°F), 1,000 lbs meat (0°F), 1,300 lbs produce (35°F). Pre-cooling takes 25–30 minutes per zone; recovery averages 8 minutes per stop. Cycle-Sentry saves 0.3 gallons/hour over 12 hours, cutting fuel by $1,500/year ($4/gallon). Telematics flags a Zone 2 temp spike (38°F), averting a $12,000 loss.
Scenario 2: Pharmaceutical Distribution (Minneapolis, MN)
A 24 ft Hino 268 with a T-1090 Spectrum runs 200 miles daily, carrying 600 lbs vaccines (36–46°F) and 400 lbs reagents (-20°F). The Arctic Package ensures -15°F starts; SmartPower saves $1,000/year at a depot. TracKing® logs secure a $100,000 contract.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Scenario 3: Catering Operation (Los Angeles, CA)
A 22 ft Ford F-750 caters events with 800 lbs frozen (-20°F), 700 lbs chilled (35°F), and 500 lbs ambient. Noise reduction (60 dB) meets LA ordinances; solar panels (110W) power a lift gate. QuickTemp saves 0.2 gallons/hour over 10 hours, reducing costs by $900/year.
Maintenance Procedures
2,000-Hour Service
•Oil Change: Drain 7 quarts (P/N 11-9181 synthetic), replace filter (P/N 11-9182), torque drain plug to 25 ft-lbs.
•Fuel System: Swap primary (P/N 11-9341) and secondary (P/N 11-9342) filters, bleed air (5–10 psi).
•Belts: Check tension (10–12 lbs), replace if cracked (P/N 78-1362).
•Coolant: Top off 50/50 ethylene glycol (1.5 gallons), test freeze point (-34°F).
•Diagnostics: Clear fault codes via HMI (e.g., P-017 low oil pressure), inspect hoses/clamps.Buy Thermo King T-1090 Spectrum® Multi-Temp Unit Online
Daily Checks
•Fuel (30-gallon tank, 50–60 hours runtime).
•Battery voltage (12.6–12.8V).
•Visual inspection (leaks, ice buildup).
Reviews (0)
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Buy 7300 Trailer Refrigeration Unit
Buy 7300 Trailer Refrigeration Unit
Buy 7300 Trailer Refrigeration Unit
Features and Benefits:
- The X4™ Series. Built upon the proven X2™ platform, the X4 trailer refrigeration unit series sets the bar even higher as the new industry standard for refrigeration performance and efficiency.
- Higher capacity. The X4 7300 TRU delivers more refrigeration capacity than the model it succeeds – up to 66,000 BTUs of cooling at AHRI rating conditions – while providing faster pulldown, precise temperature control and peace of mind for demanding applications.
- Ultra high efficiency. EcoFORWARD™ technologies deliver significant fuel savings as well as higher performance, achieving 35 to 50 percent more BTUs of cooling per gallon of fuel.
- Compliance plus. The unit provides compliance with 2013 EPA Tier 4 emissions regulations, while also improving operational efficiencies and performance.
- Proven reliability. The enhanced platform now includes proven high efficiency components from our Vector™ series and an industry leading warranty for dependability and reliability.
- APX™ control system. The modular APX system combines remarkable control intelligence, temperature control and system reliability with amazingly simple operation.
- Lower cost of ownership. Combining innovative engineering with a straightforward, practical design means less fuel consumption, reduced engine run hours, and lower maintenance costs. Buy 7300 Trailer Refrigeration Unit
-
Performance Specifications
-
Condenser Dimensions 76.4" x 85.7" x 22.8" (1,940 x 2,176 x 579 mm)
Evaporator Dimensions 66.3" x 45.2" x 8.2" (1,684 x 1,149 x 280 mm)
Body Opening 66.8" x 46.0" (1,696 x 1,168 mm)
Approximate Weight 1,685 lb. (765 kg) Remote 50-gallon aluminum fuel tank with mounting brackets: 65 lb. (29 kg) Battery: 50 lb. (23 kg)
Cooling Capacity Ambient at 100°F (38°C)
- Buy 7300 Trailer Refrigeration Unit
Buy Carrier Transicold Online
Buy Carrier Transicold Online
Buy Carrier Transicold Online
Turn To Our Expert Dealer Network.
TRU Engine - Trailer - Legacy Engine Emissions System (L-EES)
- CARB has granted full verification status to the Carrier Legacy EES as a Level 3+ VDEC Device*
- Product availability in 2015, dependent on unit model
TRU Engine - Trailer - Upgrade to a Tier 4i Engine
- 100% Brand New OE Engines
- Improved Fuel Efficiency of Up to 2%**
- Quieter and Cleaner Emissions
- 2 Year Limited Warranty***
TRU Engine - Truck - Upgrade to a Tier 4 Engine
- Up to 7 Years of Compliance
- Cleaner Emissions
- Drop-in Replacement
- 100% Brand New Engines
- 1 Year Limited Warranty***
- CARB HOTLINE – 888-TRU-ATCM (878-2826)
- Current ATCM for TRU Regulation –
- Look Up Your Carrier Reefer Status - carb.carrier.com
- Buy Carrier Transicold Online
Buy EliteLINE® Container Refrigeration Unit Online
Buy EliteLINE® Container Refrigeration Unit Online
EliteLINE® Container Refrigeration Unit
The first scroll compressor specially built for container refrigeration.
Our designers didn’t compromise EliteLINE unit performance. Rather than modify existing scroll technology from less-demanding air conditioning applications, we built a scroll compressor exclusively for container refrigeration. Our innovative, exclusive EliteLINE container refrigeration system features Carrier’s patented scroll wrap geometry. It is the specially built, single-scroll platform that uses non-ozone-depleting HFC-134a. It delivers the most advanced protection for your sensitive cargoes.
Using patented Carrier scroll compressor design, the EliteLINE is specially built to meet the extreme performance demands of oceanic container refrigeration.
- The inner chamber of the scroll compressor features patented wrap geometry.
- The walls are tapered, making them thicker than the standard air conditioning spiral.
The higher-strength wall design maximizes efficiency and reliability resulting in higher cooling capacity, using non-ozone-depleting HFC-134a.
- High capacity from an exclusive, single HFC-134a scroll compressor.
- Patented state-of-the-art electrostatically coated copper fin, tube, and tube sheet condenser coil for superior corrosion protection.
- Evaporator coil with copper tubing and aluminum fins, treated for improved condensate drainage.
- Precisely aligned, high efficiency evaporator fan motors and vane-axial fans reduce fan heat and improve cooling capacity.
- Lightweight, corrosion-proof composite condenser fan.
- Micro-Link® 3 microprocessor controller.
- Auto defrost takes the guesswork out of setting defrost intervals while providing up to 40% power savings.
| Temperature | Watts | Btu/hr |
|---|---|---|
| 2°C (35°F) | 10,550 | 36,000 |
| -18°C (0°F) | 6,160 | 21,000 |
| -29°C (-20°F) | 3,960 | 13,500 |
Buy Thermo King SB330 Online
Buy Thermo King SB330 Online
Standard Features
- SMART REEFERTM SR-3 Controller
- Electronic Throttling Valve (ETV)
- EMI-3000 with 5 micron filter
- Exclusive fuel pre-filter
- OptiSetTM Plus featuring: - Continuous Run - Modulation - CYCLE-SENTRYTM- CYCLE-SENTRY with modulation
- Directional air delivery
- ServiceWatchTM
- CargoWatchTM
- Long-life coolant and silicone hoses
- Long-life composite exterior panels
- Easy-access door design
- Vibration isolation system
- 50-gallon aluminum undermountfuel tank
- Visual fuel level gauge
Factory Options
- Ultra sonic fuel sensor
- Remote monitoring lights- Status display - Status and fuel display - Status, fuel and temp display
- Fuel heater
- Frost plug heater
- Alternator, 65 amp, 12Vdc
- i-Box interface
- CargoWatch accessories- Electronic door switches- Temperature sensor kits
- WhisperTM quiet technology
- Chrome appearance package
Dealer Options
• PrimAir bulkhead and duct system • Humidity sensor kits
• EON battery
• Remote monitoring lights
- Status and fuel display
- Status, fuel and temp display • CargoWatch accessories:
- Electronic door switches
- Temperature sensor kits • i-Box interface
The Thermo King SB330 has exceptional system performance.
With an electronic throttling valve to protect your load and maximise your trailer’s performance.
The SB330 has a range of OptiSet Plus features including continuous run and Cycle-sentry with modulation. The SB330 has a 190L aluminium undermount fuel tank and visual fuel level gauge.
Factory Features:
- Ultra-high efficiency
- Compliance plus while also improving operational efficiencies and performance.
- Proven reliability
- APX™ control system. The modular APX system combines remarkable control intelligence, temperature control and system reliability with amazingly simple operation.
- Lower cost of ownership.
Buy Used Thermo King SB-210+ Power Unit Online
Buy Used Thermo King SB-210+ Power Unit Online
Stock #P-42957 Part TypeTruck Equipment/Accessories / Power Units Power Unit TypeThermo King Power Unit ModelSB-210+ Engine MakeIngersoll-Rand Engine ModelTK486V Serial#K41584 Casting#K41584
Truck MakeNot Available ConditionUsed Description(Used) 2009 ThermoKing SB-210+, REEFER UNIT- Serial Number: 6001053348, Item Number: 900839M*1062859, Ref: R404A, Wt: 13, Volts: 12 VDC, DESC: SB-230 + 30 Unit ID: 0696CM053348, 002128-ADD SB-210 ETV, 069048-ADD Tank Fuel 50 Gal. AL 22DIA, Diagrams: 1E51226 Engine Make: Ingersoll-Rand, Model: TK486V, Family Number: 9YDXL2.09K4N, Displacement: 2.1L, Minor Cosmetic Damage Reference images for condition, For more information about this item, give us a call. We ship Worldwide! (CRG HEAVY TRUCK PARTS) 929 W PULASKI HWY ELKTON, MD 21921
Buy V-520 Rooftop Truck Unit Online
Buy V-520 Rooftop Truck Unit Online
DESCRIPTION

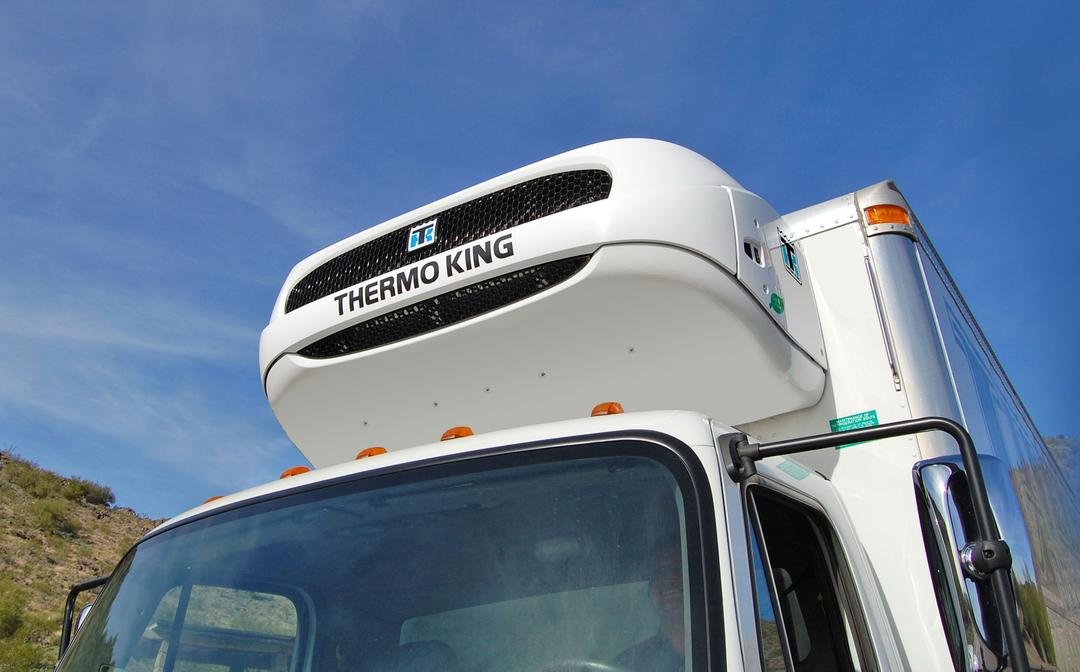

The V-520 series vehicle-powered refrigeration units provide superior cooling performance in two different packages: nosemount and rooftop. The nosemount refrigeration unit is ideal for small to medium size insulated box trucks, while the rooftop arrangement is perfect for medium to large vans and body-on-chassis vehicles with reach-in side compartments. Only Thermo King offers a rooftop reefer unit with this much capacity in a slim line package (just 6 inches above the roof for non-standby units).
![Buy V-520 Rooftop Truck Unit Online]()
Buy V-520 Rooftop Truck Unit Online
FEATURES
- SmartPower electric standby option (230 VAC)
- Automatic hot gas defrost
- Optional heating package (hot gas, MAX units)
- Jet Lube compressor lubrication
- Jet Cool compressor injection cooling (MAX units)
- DSR controller
- 12VDC
- 24VDC (non-standby units only)
- Lightweight construction
- Very long life condenser fans
COOLING AND HEATING CAPACITIES
- Model: V-520 MAX RT
- Refrigerant: R-404A
- Truck Engine Cooling Capacity-BTU/hr: 35°F: 15,500
- Truck Engine Cooling Capacity-BTU/hr: 0°F: 8,200
- Truck Engine Cooling Capacity-BTU/hr: -20°F: 5,000
- Electric Standby Cooling Capacity-BTU/hr: 35°F: 10,400
- Electric Standby Cooling Capacity-BTU/hr: 0°F: 6,600
- Electric Standby Cooling Capacity-BTU/hr: -20°F: 3,500
- Evap Overflow CFM: 1,415
- Hot Gas Heating-BUT/hr: Engine: 14,000
- Hot Gas Heating-BUT/hr: Electric: 8,000
Buy V-520 Rooftop Truck Unit in usa
V-520 Rooftop Truck Unit Online
Carrier Undermount Genset For Sale Online
Carrier Undermount Genset For Sale Online
Standard Features
- V2403-CR-E4B, 4-cylinder, water-cooled, 2.4-liter, Common rail injection diesel engine
- Nominal 15 kW high-efficiency permanent magnet generator
- Controller with enhanced FuelWise functionality
- 68–gallon steel tank (tank options 50-gallon steel, 50-gallon aluminum, 80-gallon aluminum)
- All-steel fabricated frame construction with four-point PlateMount system
- High-efficiency dry element air cleaner
- Full-flow spin-on oil filter with internal bypass
- Integral fuel filter with water separator
- Fuel heater Stainless steel exhaust
- Stainless steel hardware
- Driver-side controls
- Large aluminum service access door
- Battery access door
- Forklift pockets allow mounting from either side
- 12V DC maintenance-free battery
- Safety stop controls for low oil pressure, high water temperature
- Frame and sheet metal components powder-coated for durability Patented E-coat tube and fin radiator
- Large oil pan capacity extends running hours between oil changes
-
Carrier Undermount Genset For Sale Online
Reviews
There are no reviews yet.
